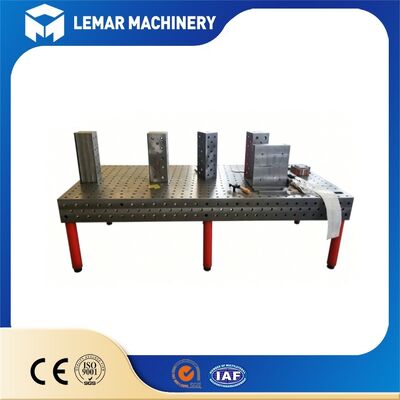

Professional Fabricator Choice D28 3D Modular Welding Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | Western Union,T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Modular welding table with clamps
,D28 welding fixture table
,Professional fabricator welding table
Forget costly custom jigs and unstable makeshift fixtures. Our D28 5-sided 3D welding table delivers universal 3-axis positioning, ultra-high flatness and extreme load capacity for heavy-duty metal welding, assembly and inspection.
Built for steel structure factories, automotive chassis workshops, and engineering machinery manufacturers. Replace dozens of dedicated fixtures with one single table.
The D28 3D modular welding table, also named System 28 flexible fixture platform, is an industrial multi-purpose tooling system, not just a simple workbench.
- Core standard: Φ28mm locating holes, 100×100mm uniform grid
- 3D advantage: Top surface + 4 vertical side panels all pre-drilled with D28 holes (5 working sides total), enabling X/Y/Z 3D multi-angle clamping
- Full modular compatibility: All D28 clamps, blocks, bolts, and supports interchangeable worldwide
- Dual material options: Nitrided Q355 high-strength steel / Stress-relieved HT300 cast iron
| Specification | Details |
|---|---|
| Hole Specification | D28 Φ28mm, grid pitch 100×100mm ±0.05mm |
| Side Panel Height | 200mm, 3 rows D28 holes on four sides |
| Table Thickness | 25mm |
| Base Material | Q355B High Strength Steel / HT300 Grey Cast Iron |
| Surface Hardness | Nitrided Steel HV450~500; Cast Iron HB190~210 |
| Flatness Tolerance | Steel: ≤0.3mm/1000mm; Cast Iron: ≤0.1mm/1000mm |
| Max Load Capacity | 2000-3000kg/㎡ |
| Surface Roughness | Ra3.2 precision milling |
| Standard Sizes | 1000×800 / 1000×1000 / 1500×1000 / 2000×1000 / 3000×1500mm |
Brazil Fabrication Owner: "Our D28 3D welding table from Lemar is excellent quality. We trust Lemar as our reliable partner for all equipment needs, payment is being processed via bank this week."
European Workshop Manager: "Welding positioner & turntable delivered safely. Great service from Annie, smooth cooperation, will reorder more welding tooling soon!"
Real customer reviews of Lemar D28 3D modular welding table, welding positioner and welding turntable. Global fabricators praise our heavy-duty welding equipment quality, professional sales support and reliable after-sales service. Clients from Brazil and Europe confirm intact machine delivery and stable long-term business partnership with Lemar Machinery.
- D28 3D nitrided welding table top
- Support legs (4 legs for smaller sizes; additional legs for extra-large tabletops)
- Basic fixture kit: locating pins, quick-action clamps, angle blocks, V-blocks, height spacers, connecting bolts, and table joining connectors
- Dust-proof plastic hole plugs and leveling tools
- Precision inspection certificate and English operation manual
- Fumigation-free wooden crate/pallet packaging for export shipping
Choose the industry-leading Professional Fabricator Choice D28 3D Modular Welding Table.
Contact our team for tailored solutions and factory-direct pricing now.
