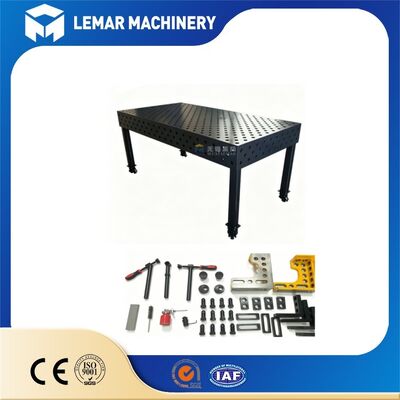

Multi FunctionWorkshop Modular D28 3D Welding Fixture Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | Western Union,T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Modular welding fixture table
,3D welding fixture table
,Multi function workshop table
The Multi Function Workshop Modular D28 3D Welding Fixture Table features an international D28 hole system (Φ28mm, 100×100mm grid) with 5-sided fully perforated design for comprehensive 3D multi-angle workpiece clamping. Constructed from Q355 steel with integral stress relief treatment and plasma nitrided surface, it delivers ultra-flat performance with exceptional wear and spatter resistance. Paired with a complete set of modular clamping accessories, this system eliminates the need for custom jigs while dramatically enhancing workshop welding efficiency for metal fabrication, frame, and tube production.
| Size (L × W) | Top Thickness | Grid Pitch | Flatness Tolerance |
|---|---|---|---|
| 1000 × 1000 mm | 25mm | 100×100 mm | ≤0.03mm/m |
| 1000 × 1200 mm | 25mm | 100×100 mm | ≤0.03mm/m |
| 1000 × 1500 mm | 25mm | 100×100 mm | ≤0.03mm/m |
| 2000 × 1000 mm | 25mm | 100×100 mm | ≤0.03mm/m |
| 1200 × 2400 mm | 25mm | 100×100 mm | ≤0.03mm/m |
| 3000 × 1500 mm | 25mm | 100×100 mm | ≤0.03mm/m |
| 4000 × 2000 mm | 25mm | 100×100 mm | ≤0.03mm/m |
- Standard D28 100×100mm hole grid with ±0.05mm machining tolerance for full fixture interchangeability
- Nitrided finish provides anti-weld spatter protection, scratch resistance, and rust-free long service life
- 5-sided 3D positioning structure enables X/Y/Z axis multi-angle clamping without additional risers
- Multiple leg options: fixed leveling legs, brake caster wheels, or height adjustable telescopic legs
- Modular building-block design allows quick fixture changeover within minutes, reducing jig manufacturing costs
- Wide compatibility with MIG, TIG, laser welding, and robotic welding cells
Standard Package: Main table body + support legs (3 types optional) + hole protection plugs + installation tools + English manual + full CE and ISO certification documents.
Upgrade Accessories: Complete D28 clamping kits (locking pins, clamps, angle blocks, risers, V-blocks), robot connection base, multi-table connecting pins, stainless steel anti-corrosion top, custom logo & non-standard size OEM service.
Our client Marco shared that he was deeply impressed by the superior craftsmanship of our D28 3D welding fixture table after viewing our detailed product demonstration video. The exquisite workmanship and precise production details visible in the video fully convinced him of our product's reliable quality.
He praised our thoughtful service and patient communication throughout the whole consultation, and expressed great anticipation to receive the welding table and put it into formal workshop production.
Workshop owners consistently praise our 3D welding tables after reviewing our product display videos, impressed by our solid construction and fine surface craftsmanship.
We supply complete table solutions including adjustable support legs, all series positioning clamps, and multi-table splicing parts. Custom OEM service is also available.
Contact our technical team today for one-stop industrial welding fixture solutions and competitive wholesale pricing.
