Hardened Working Surface D28 3D Welding Fabrication Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
CE
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Nitride Layer Thickness:
0.15–0.20mm
Surface Hardness:
HRC 42–52
Surface Roughness:
Ra1.6 ~ Ra3.2
Flatness:
≤0.1mm Per Meter
Verticality Of Side Panels:
≤0.05mm / 200mm Height
Hole Repeat Positioning Accuracy:
±0.05mm
Height Adjustment Range:
±30mm By Leveling Feet
Uniform Area Load:
4000–6000kg/㎡
Total Bearing Capacity:
2–10 Tons Based On Table Dimension
Highlight:
Hardened welding fabrication table
,D28 3D welding table
,Welding fixture work surface
Product Description

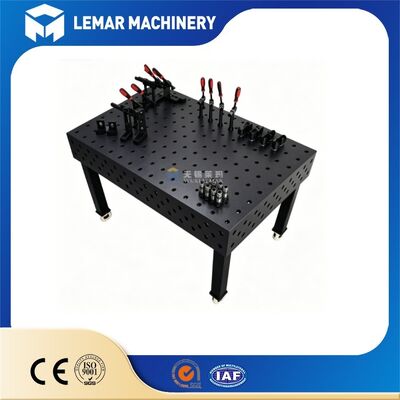

Hardened Working Surface D28 3D Welding Fabrication Table
The Hardened Working Surface D28 3D Welding Fabrication Table is an industrial heavy-load three-dimensional modular clamping platform, specially built for large, thick, heavy metal fabrication projects.
- D28 Standard: Φ28mm locating holes, uniform 100×100mm orthogonal grid pitch, the global mainstream heavy-duty fixture standard
- 3D Full 5-Side Design: Precision grid holes machined on top surface + four vertical side panels, enabling full X/Y/Z omnidirectional clamping, horizontal, vertical, tilted & suspended workpiece fixing
- Core Highlight — Hardened Working Surface: The whole tabletop and four side panels adopt integral plasma nitriding hardening treatment. The hardening layer drastically improves wear resistance, anti-spatter, anti-rust and impact resistance, solving the pain point of ordinary tables easy to stick welding slag, scratch and lose precision quickly
3D Hardened Table Comparison
| Comparison Item | Hardened D28 3D Welding Table | Standard D16 3D Welding Table |
|---|---|---|
| Hole / Grid | Φ28mm, 100×100mm wide grid | Φ16mm, 50×50mm dense grid |
| Main Load Feature | Super heavy load, thick plate, large frame | Medium load, thin stainless steel, small precision parts |
| Clamping Strength | Heavy-duty high clamping force fixtures | Light compact small clamps |
| Table Thickness | 25mm thick plate | 12mm thick plate |
| Single-point Bearing | Max 2000kg | Max 1500kg |
| Best Workpiece | Trailer, chassis, construction steel, agricultural machinery, thick pipe frame | Cabinet, metal furniture, small prototype, thin sheet assembly |
Why Choose Our Hardened D28 3D Welding Fabrication Table
- Professional factory with 10+ years modular welding table production experience, direct factory price without middleman markup
- Standard full plasma hardened working surface as default configuration, no extra upgrade cost for wear-resistant treatment
- Strictly follow international D28 System28 industrial standard, all fixtures compatible with global mainstream brands
- Support full customization: table size, plate thickness, special working height, customized heavy support frame
- Complete export service: plywood fumigation-free wooden case packaging, support EXW/FOB/CIF/DDP global shipping
- 1 year table body warranty, lifetime free technical support, fixture layout design and remote video installation guidance
FAQ
Q1: What does "Hardened Working Surface" mean?
It refers to the full-body plasma nitriding hardening process on the entire top and four side working surfaces of the D28 table. The hardened layer greatly improves hardness, wear resistance and anti-spatter performance, which is the standard configuration of our heavy-duty D28 3D model.
Q2: When should I select D28 hardened table instead of D16?
Choose D28 hardened version if your main workpieces are thick steel plate, heavy structural frames, trailers, vehicle chassis and large pipe assemblies that require strong clamping force and high load capacity. D16 is only suitable for small thin precision parts.
Q3: Can multiple D28 3D welding tables be spliced together?
Yes, same-size D28 3D tables can be connected by dedicated high-strength splicing bolts to form an oversized continuous hardened working surface for ultra-long steel beams and large integral frames.
Q4: Are D28 fixtures universal across different brands?
Our D28 hole grid fully complies with international System28 standard, all standard D28 clamps, locating pins and angle blocks on the market can match our hardened working surface perfectly.
Upgrade your heavy fabrication workflow with the Hardened Working Surface D28 3D Welding Fabrication Table. We provide factory direct price, CE certification and full after-sales support. Fill in the inquiry form below to get professional solution and best offer.
