5 Ton Welding Positioner 360° Rotation 0-90° Tilting Rotary Welding Table
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 170.00cm * 190.00cm * 190.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-5t
Document
Model NO.:
BWJ-5t
Max Eccentricity Distance:
150mm
Voltage:
110V/220V
Function:
Pipe Flange Welding Turntable
Horizontal Loading Weight:
5000kg
Rotation Speed:
0.09-0.9rpm
Worktable Diameter:
1600mm
Table Height:
1800mm
Postioner Type:
Seat Type
Highlight:
5 ton welding positioner with 360° rotation
,rotary welding table with 0-90° tilting
,welding positioner for heavy-duty applications
Product Description

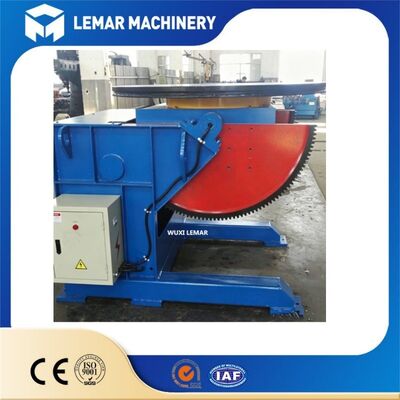

5 Ton Welding Positioner 360° Rotation 0-90° Tilting Rotary Welding Table
Product Overview
The 5 ton welding positioner is a classic medium-load rotary welding workstation designed for general industrial fabrication applications.
- Provides 360° full rotation and electric tilting capability for optimal flat welding positioning
- Reduces repeated clamping operations and eliminates welding dead angles
- Enhances welding consistency while saving labor costs
- Features compact, heavy-duty construction suitable for batch welding of medium-sized workpieces
- Compatible with automatic welding machines for semi-automatic and fully automatic welding production
Technical Parameters
| Item | Specification |
|---|---|
| Model | HB-50 Welding Positioner |
| Rated Load | 5 Ton / 5000kg |
| Rotation Mode | 360° Continuous Rotation |
| Tilting Angle | 0°-90° Electric Tilting |
| Turntable Diameter | 1200mm (Customizable) |
| Rotation Speed | 0.1-1.0 r/min Stepless Adjustable |
| Tilting Motor Power | 1.5kW |
| Rotation Motor Power | 1.1kW |
| Control System | Frequency Inverter + Hand Pendant |
| Power Supply | 380V/50Hz, 3 Phase (Customizable) |
| Application | Pipe, Vessel, Tank, Structural Welding |
| Certification | CE Certified |
Core Features
- 5 Ton Standard Load Capacity: Stable bearing for 5000kg medium workpieces with no shaking during operation
- 360° Continuous Rotation: Uniform rotary motion ensures even welding bead forming
- 0-90° Electric Tilting: Flexible angle adjustment for flat welding, horizontal welding and fillet welding requirements
- Frequency Stepless Speed Control: Smooth speed adjustment without jitter, suitable for precise welding
- Heavy-duty Steel Structure: Thickened base and turntable for durability and anti-deformation
- Simple Operation: Handheld pendant control for easy worker operation
- Wide Compatibility: Perfect match with welding manipulator and automatic welding systems
Application Scope
- Medium-sized pressure vessel and cylinder welding
- Pipe flange welding, pipe fitting and pipe assembly work
- Stainless steel tank, round tank and small vessel fabrication
- Steel structure cylindrical parts welding
- Workpiece surface polishing, coating and anti-corrosion treatment
- Batch production in mechanical processing and welding workshops
Working Principle
The 5 ton welding positioner utilizes a dual motor drive system for independent rotation and tilting functions.
- The turntable carries the workpiece and performs 360° uniform rotation
- Electric tilting adjusts workpiece angle freely to convert overhead welding into flat welding
- Frequency converter controls rotating speed precisely to coordinate with welding speed
- Stable mechanical transmission ensures long-term continuous welding operation
Frequently Asked Questions
Q: What is the load capacity of this welding positioner?
A: Standard rated load is 5 ton (5000kg), suitable for medium-sized workpieces.
Q: Does it support tilting and full rotation?
A: Yes, 0-90° electric tilting + 360° continuous rotation.
Q: Is the rotation speed adjustable?
A: Stepless frequency speed adjustable, very stable for precision welding.
Q: Can it match automatic welding machine?
A: Fully compatible with welding manipulator for automatic welding line.
Q: What is the warranty?
A: 12-month full machine warranty and 24-hour online support.
