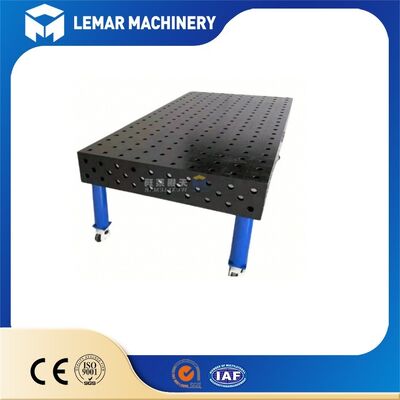

Heavy Fabrication Rated D28 3D Modular Precision Welding Work Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,T/T,Western Union,D/P |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Overall Flatness:
≤ 0.05 Mm/m
Full Table Flatness:
≤ 0.10 Mm
Hole Pitch Tolerance:
± 0.05 Mm
Hole Position Deviation:
± 0.05 Mm
Hole Grade:
H7
Side Hole Verticality:
≤ 0.03 Mm/100mm
Plane Parallelism:
≤ 0.06 Mm/m
Surface Roughness:
Ra 1.6 ~ 3.2 μm
Hardened Layer Depth:
0.3 ~ 0.5 Mm
Highlight:
Heavy Fabrication welding work table
,D28 modular welding fixture table
,Precision welding table with warranty
Product Description
Heavy Fabrication Rated D28 3D Modular Precision Welding Work Table
Engineered for heavy-duty industrial welding, assembly and fixturing tasks, this heavy fabrication rated D28 3D modular precision welding work table delivers outstanding load capacity, rigidity and repeat positioning accuracy.
Built to strict precision standards, it adopts standard D28 hole system and 5-sided 3D perforated design. Featuring modular and spliceable structure, it can be used alone or connected with multiple units to expand working area, perfectly suited for large workpieces and high-volume heavy fabrication workshops.
Load Capacity
- Uniformly distributed static load: 2,000-3,000 kg/m² (approx. 2-3 tonnes per square meter)
- Concentrated load: Up to 5,000 kg at a single point (with appropriate support)
- Deflection under full load: ≤0.15 mm/m after 24 hours of loading; no permanent deformation
- Heat resistance: The thick plate acts as a heat sink, minimizing thermal deformation during heavy-duty welding (plate thickness: 10-50 mm)
- Stability: The overall structure remains stable without tipping or twisting, even when supporting heavy workpieces with unbalanced centers of gravity
Fixture Compatibility
System Standard: D28 (Φ28 mm) international standard, compatible with all global D28 accessories.
Common Accessories
- Locating pins & locking pins (D28, H7)
- Quick clamps & heavy‑duty clamps (up to 5 tons clamping force)
- Right‑angle blocks, V‑blocks, angle brackets (90°, 45°, 30°)
- Extension arms, T‑blocks, connecting blocks
- 3D Fixturing: Holes on top + four sides enable clamping from X/Y/Z directions; ideal for complex 3D weldments
D28 vs D16 Key Advantages
| Feature | D28 | D16 |
|---|---|---|
| Load Capacity | 2-3 tons/m² | 1 ton/m² |
| Strength Advantage | 2-3× stronger | Base level |
| Clamping Force | 50% more force | Standard force |
| Durability | Longer service life in harsh environments | Standard durability |
| Heat Dissipation | Better thermal stability, less welding distortion | Standard heat handling |
| Best Application | Heavy industrial fabrication | Light‑duty, small parts |
If you are looking for a durable, high-precision welding platform for heavy fabrication, our D28 3D modular welding work table is your ideal choice. It combines heavy load capacity, flexible fixturing and expandable design to boost your production efficiency.
Contact us today to get competitive quotes and professional technical support.
