Universal Industrial Fixture D28 3D Modular Steel Welding Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Side Panel Height:
200 Mm
Standard Tabletop Thickness:
25mm
Surface Hardness:
HRC 42 ~ 52
Flatness Tolerance:
≤0.05mm/m
Hole Position Tolerance:
±0.05mm
Uniform Static Load:
2~3 Tons / ㎡
Hole Position Deviation:
± 0.05 Mm
Verticality Of Side Holes:
≤ 0.03 Mm/100mm
Surface Roughness:
Ra 1.6 ~ 3.2 μm
Highlight:
Universal Industrial Welding Table
,Modular Steel Welding Fixture
,D28 3D Welding Table
Product Description

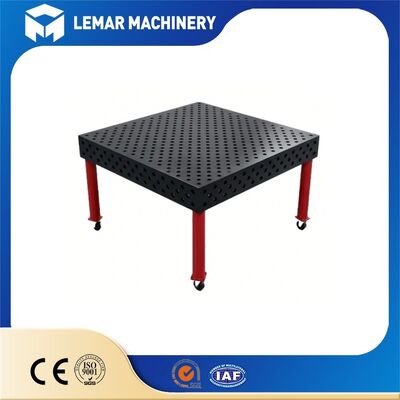

Universal Industrial Fixture D28 3D Modular Steel Welding Table
Product Overview
Our Universal Industrial Fixture D28 3D Modular Steel Welding Table is a heavy-duty universal fixturing solution designed for large workpieces and high-load industrial operations. Adopting standard D28 hole system and 5-sided full perforated structure, it combines superior load capacity, high precision and strong expandability. This all-steel welding platform replaces traditional custom jigs, greatly cuts production costs and improves working efficiency for heavy fabrication, welding, assembly and inspection tasks.
Standard Size Chart
| Tabletop Size (L × W, mm) | Max Static Load (Evenly Distributed, kg) | Net Weight (kg) | Gross Weight (kg, with package) |
|---|---|---|---|
| 1000 × 1000 | 2000-2500 | 290 | 340 |
| 1500 × 1000 | 3000-3500 | 430 | 500 |
| 2000 × 1000 | 4000-4500 | 570 | 660 |
| 2000 × 1200 | 4500-5000 | 680 | 790 |
| 2400 × 1200 | 5000-6000 | 820 | 950 |
| 3000 × 1500 | 7000-8000 | 1350 | 1550 |
- All models adopt standard D28 hole system (Φ28mm locating holes, 100×100mm grid pitch) with nitrided surface treatment.
- Customization available: Non‑standard dimensions, reinforced tabletop thickness, heavy‑duty frames and special‑height legs are all supported.
- The above weights are for reference only; actual gross weight depends on packaging design and accessories.
Key Features (D28 vs. D16)
- Heavy-load capacity: The D28 modular welding table features larger apertures and a wider grid spacing, making it suitable for heavy workpieces exceeding 1 ton; the D16 series (φ16/50×50mm) is designed for precision work on smaller, lighter components.
- Five-sided 3D positioning: Standard holes on the top surface and all four sides allow for multi-angle, multi-dimensional clamping without the need for custom tooling.
- Modular, limitless scalability: Multiple tables can be seamlessly joined to accommodate oversized workpieces; compatible with the full range of D28 fixtures (clamping plates, locating pins, angle blocks, V-blocks, etc.).
- Exceptional durability: A dense nitrided layer ensures weld spatter can be easily tapped off; the table resists hole deformation and structural warping over long-term use, offering a lifespan more than three times that of standard tables.
- Versatility: Supports the entire workflow, including manual welding, robotic welding, assembly, inspection, and tooling setup.
Packaging and Shipping
Packaging Type: Export-grade thickened plywood crates (fumigation-free) / Steel frame packaging
Protection Measures: Moisture-proof, rust-proof, and shock-proof treatments
Trade Terms: EXW, FOB, CIF, CFR, DDP
Shipping Methods: Sea, land, and air transport supported
Custom Branding: Custom logos and shipping marks supported
After-sales Service
Warranty Period: 12 months warranty against manufacturing defects
Technical Support: Professional online guidance for installation, maintenance and fixture matching
Daily Maintenance: Just clear welding spatter regularly; no complex maintenance required
For heavy-duty precision welding and assembly of large workpieces, our D28 3D modular steel welding table delivers unmatched stability, durability, and flexibility. It supports 5-sided 3D fixturing and seamless expansion. Ideal for steel structure, machinery, and pressure vessel applications.
Contact us for customized sizing, fixture matching, and a competitive quote.
