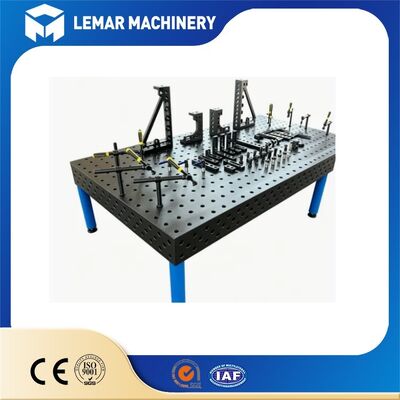

3D Welding Table D28 Series Modular Flexible Welding Workbench
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | L/C,D/A,D/P,Western Union,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Customizable Size:
Available
Hole Position Tolerance:
±0.05mm/1000mm
Repeat Positioning Accuracy:
±0.1mm
Working Temperature:
‑10 ℃ ~ +60 ℃
Standard Hole Size:
Φ28 Mm
Grid Pitch:
100×100 Mm
Surface Hardness:
HV400‑660 After Plasma Nitriding
Surface Finish After Machining:
Ra ≤3.2 μm
Nitriding Layer Thickness:
0.10–0.50 Mm
Highlight:
3D welding table modular workbench
,D28 series welding fixture table
,flexible welding workbench with warranty
Product Description
3D Welding Table D28 Series Modular Flexible Welding Workbench
Our D28 Series 3D Modular Flexible Welding Workbench delivers high-precision, heavy-duty and reconfigurable fixturing solutions for modern welding fabrication. Built for versatility and long-term stability, it supports quick setup for diverse workpieces in manual and robotic welding applications.
Engineered for heavy-load industrial welding, our D28 3D Welding Table features a standardized modular hole system to enable flexible clamping and positioning across X-Y-Z axes. Optimize your production efficiency with one adaptable workbench for multiple projects.
Key Parameters
| Material Version | Specifications |
|---|---|
| High-strength steel (Q355B) | Precision CNC machined with integral stress-relief annealing; surface nitrided (hardness HRC60+/HV400-660); resistant to weld spatter adhesion, wear, and high temperatures; highly dimensionally stable |
| High-strength cast iron (HT300) | Double-stage aging treatment for stress relief; offers superior stability and impact resistance; suitable for long-term, heavy-duty applications |
| Bore diameter tolerance | Φ28.10 ± 0.03 mm (precision grade) |
| Grid spacing | 100 mm × 100 mm; holes evenly distributed across the top surface and all four sides |
| Flatness accuracy | Grade 0 ≤ 0.05 mm/1000 mm (robotic automated welding); Grade 1 ≤ 0.10 mm/1000 mm (standard heavy-duty welding) |
| Load capacity | Standard capacity up to 3 tons/m²; reinforced versions available for extra-large, heavy workpieces |
Safety Design and Protection
Structural Safety
The welding fixture table adopts an overall rigid reinforced-rib structure, resisting overturning and tensile forces from welding stress. Anti-slip and anti-tip designs are applied to the base feet.
Operational Safety
Edges of the 3D welding table are chamfered to eliminate sharp corners. Optional guard baffles and insulating mats are available for special welding processes.
Electrical Compatibility
Models for robotic welding are pre-reserved with grounding points, complying with grounding specifications for welding equipment to reduce risks.
Optional Safety Accessories
- Explosion-proof casters
- Limit stops
- Anti-roll brackets
Expansion System
Common single-unit specifications include 1000×1000, 1200×1200, 1500×1000, 2000×1000, and 2400×1200 mm; custom non-standard sizes are also available.
Connection method: Uses specialized high-strength locking connectors to join multiple welding tables along the X and Y axes—as well as side-to-side—creating an extra-large, integrated tooling platform.
Expansion Capabilities
- Spatial expansion: Vertical extension via support columns and angle brackets to enable Z-axis tooling
- Automation expansion: Pre-configured interfaces for robot bases, pneumatic fixture connections, and data acquisition points
- Functional expansion: Addition of mobility mechanisms, integrated fume extraction and dust removal modules, and workpiece inspection/measurement modules
From structural stability to operational safety, every detail of our D28 3D welding table is engineered to boost your production efficiency and workplace security.
Feel free to send us an inquiry for quotation and professional technical consultation today.
