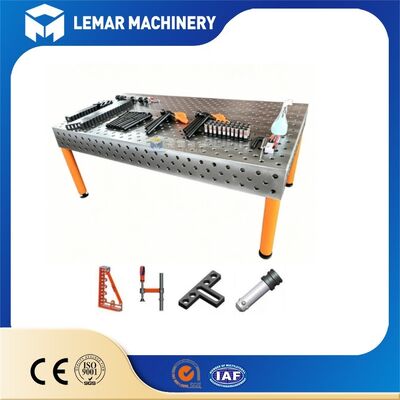

28mm Standard D28 3D Modular Welding Table for Global Industrial Clients
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | Western Union,T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Struggling with inflexible custom-made fixtures, inconsistent welding precision and long setup times for diverse industrial projects? Our 28mm Standard D28 3D Modular Welding Table for Global Industrial Clients delivers a future-proof modular alternative tailored for international industrial operations.
Featuring standard Φ28mm holes, five-face 3D working surfaces and full compatibility with global D28-series clamping accessories, it allows rapid reconfiguration for different workpieces while maintaining strict geometric tolerances. Manufactured with stress-relieved high-grade materials and advanced surface treatment, this platform adapts seamlessly to heavy-duty fabrication scenarios across global markets.
| Table Dimension (L × W) | Standard Working Height | Main Material Options | Notes |
|---|---|---|---|
| 1000 × 1000 | 630mm | Q355 Steel / HT300 Cast Iron | Compact for small-medium workpieces |
| 1500 × 2000 | 630mm | Q355 Steel / HT300 Cast Iron | Most popular general-purpose size |
| 2000 × 3000 | 630mm | Q355 Steel / HT300 Cast Iron | For medium-large structural parts |
| 2000 × 4000 | 630mm | Q355 Steel / HT300 Cast Iron | Heavy-duty for large fabrication jobs |
| Custom Size | Customizable | Customizable | Non-standard dimensions available on request |
Hole System: D28 (Φ28 mm), 100 × 100 mm grid spacing
Height Adjustment: Can be adjusted with leveling feet; fixed custom heights are supported
Modular Expansion: Multiple tables can be combined to form a larger working table
- Load-bearing Capacity and Deflection: Rated Uniform Load: Standard D28 welding table surface: 6-8 t/m² (varies based on thickness and reinforcement rib structure). Deflection Standard: Under rated load, deflection at the center of the table surface is generally controlled to <0.5 mm, ensuring positioning accuracy remains unaffected; long-term use under overload conditions is strictly prohibited.
- Heat and Weld Spatter Resistance: The plasma-nitrided layer withstands spatter from standard manual welding and gas-shielded welding; weld spatter is easily removed after cooling and does not readily adhere to or corrode the table surface.
- Compatibility Details: Universal Hole Pattern: Interchangeable and compatible with pins and clamps from mainstream European and American D28 tooling systems. Compatible Positioning Pins: D28 standard locking pins (spring-lock or bolt-lock types).
Upgrade your welding efficiency and consistency with the 28mm Standard D28 3D Modular Welding Table for Global Industrial Clients.
From standard specifications to custom-engineered platforms, we offer one-stop solutions to fit your production scenarios. Reach out to our team now to get quotations, technical datasheets and personalized project support.
