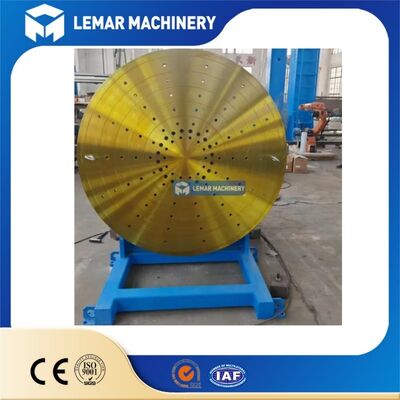

3 Ton Welding Positioner Cooperates With Welding Robot For Steel Workpieces
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 85.00cm * 70.00cm * 85.00cm |
| Payment Method: | L/C,D/A,T/T,D/P,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-3t
Document
Product Type:
Welding Positioner
Load Capacity:
3000kg
Automation Grade:
Automatic, Robot Linkage Supported
Usage:
Circular Seam Welding For Steel Workpieces
Origin:
Jiangsu, China
Customization:
OEM, ODM
Voltage:
Customizable International Voltage
Warranty:
1 Year
Loading Port:
Shanghai Port
Product Description
3 Ton Welding Positioner Cooperates With Welding Robot For Steel Workpieces
Product Overview
- This 3000kg welding positioner is specially developed to coordinate with welding robot for automated processing of various steel workpieces.
- It fixes circular, cylindrical and tank-type steel parts and rotates them at uniform speed, letting the welding robot finish circular seam welding automatically.
- It lowers manual labor intensity and eliminates human-induced unstable welding quality, widely used in pressure vessel, steel structure and metal fabrication workshops.
Technical Specifications
| Item | Specification |
|---|---|
| Rated Load | 3000kg (3 Ton) |
| Standard Turntable Diameter | Φ1200/Φ1400/Φ1600mm, customizable |
| Rotation Speed | 0.1~1 r/min, stepless frequency adjustment |
| Rotation Mode | 360° continuous horizontal rotation |
| Driving Structure | Gear reducer + frequency conversion motor |
| Control Mode | Hand pendant + control cabinet, robot linkage available |
| Input Voltage | 380V/50Hz; 220V/415V/440V customizable |
| Main Material | Thickened Q235 carbon steel |
| Turntable End Runout | ≤0.3mm |
| Allowable Eccentric Load | ≤15% rated load |
| Electrical Protection Grade | IP54 |
| Approx. Overall Weight | 2200kg |
| Optional Accessories | Tilting device, self-centering chuck, foot switch |
Application Range
- Automated welding matched with welding robot for carbon steel & stainless steel structural parts
- Circumferential seam welding for steel storage tanks and pressure vessels
- Processing of steel pipes, flanges, rollers and tubular components
- Intelligent automated welding workshop whole-line layout supporting robot equipment
Core Advantages
Seamless docking with welding robot
Reserved standard signal interface, no secondary modification needed to connect mainstream brand welding robots. Realize synchronous linkage control to achieve full unmanned automatic welding workflow.
Stable low-speed rotation for precise welding
Frequency stepless speed regulation ensures no shaking at low rotation speed. Workpieces stay fixed without offset, forming smooth and uniform weld beads.
Heavy-load rigid structure for mass production
Thickened Q235 carbon steel frame and reinforced turntable support full 3 ton rated load safely. Stress relief annealing treatment avoids deformation after long-time continuous operation.
Dual control mode easy for production line integration
Handheld pendant + independent electric control cabinet two operation modes. Parameters can be adjusted locally or unifiedly set via robot central control system.
Wide compatibility for multiple steel parts
Fits carbon steel, stainless steel, alloy steel pipes, flanges, storage tanks and tubular components.
After-sales Service
- Whole machine 12-month warranty, excluding vulnerable spare parts
- Remote video guidance for installation, debugging and robot linkage parameter setting
- Lifelong free technical consultation, spare parts supplied at cost price permanently
Frequently Asked Questions
Can this 3T positioner connect to different brands of welding robots?
Yes. Standard signal interface is reserved, compatible with most mainstream welding robots without extra transformation, supporting synchronous linkage welding for steel workpieces.
What steel workpieces is this machine suitable for?
It applies to carbon steel, stainless steel, alloy steel tanks, pipes, cylinders, flanges and pressure vessel components, perfect for robot circular seam automatic welding.
Will rotation shake during robot coordinated welding?
No. Frequency conversion stepless speed control ensures stable low-speed operation, consistent rotation speed guarantees uniform weld forming and stable welding effect.
Do you accept customized requirements for special steel workpieces?
OEM & ODM customization is supported. Custom turntable size, special fixtures, tilting function, international voltage and robot signal protocol adaptation are available.
What kind of after-sales support can you offer for robot linkage debugging?
12-month full machine warranty is provided. We offer free remote video guidance for installation and linkage debugging, plus lifelong technical support and cost-price spare parts supply.
