High quality D28 3D welding table specifically designed for welding
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Features:
Anti-spatter, Wear-resistant, Anti-rust
Surface Hardness:
HV 450 – 600
Surface Treatment:
Gas Nitriding
Internal Structure:
Box Type With Reinforced Ribs
Top Plate Thickness:
25 Mm
Static Load:
5 – 8 Tons / ㎡
Single Point Load:
≥ 2 Tons
Warranty:
1 Years Warranty
Working Sides:
5 Sides
Product Description

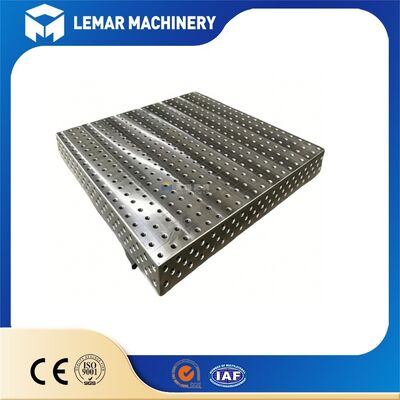

High Quality D28 3D Welding Table
Specifically designed for precision welding applications, the D28 3D welding table offers superior performance and flexibility.
Professional Welding Equipment
The D28 3D welding table is a standard fixture for heavy-duty welding, featuring a 28mm diameter hole system with 100mm grid spacing, five-sided clamping capability, and nitriding wear resistance. This innovative design addresses the limitations of traditional welding fixtures—poor flexibility, low accuracy, and susceptibility to deformation—significantly enhancing both welding efficiency and workpiece precision.
Product Specifications
| Customizable to Any Size | Dimensions (L × W × H) |
|---|---|
| Standard Sizes | 1000×1000×200mm/150mm 1500×1500×200mm/150mm 1000×1500×200mm/150mm 1500×2000×200mm/150mm 1000×2000×200mm/150mm 1500×3000×200mm/150mm |
| Additional Sizes | 1000×2500×200mm/150mm 1200×2400×200mm/150mm 1200×1200×200mm/150mm 2000×3000×200mm/150mm 2000×4000×200mm/150mm |
Support and Lifting System
- Fixed Leg: Carbon steel/aluminum alloy construction, height 750-850mm, exceptional load-bearing capacity, cost-effective solution
- Adjustable Height Legs: ±50-100mm fine adjustment with horizontal leveling capability, ideal for uneven ground conditions
- Telescopic Feet + Casters: Easy mobility with braking system; perfect for multi-station operations and frequently changing work scenarios
Quality Standards and Certification
3D welding table execution standards: ISO 9001, CE certification
Factory Inspection
- Flatness/Verticality Inspection Report
- Hole Position Accuracy Detection
- Material Certification and Hardness Test Report
FAQ
What is the flatness and hole position accuracy?
Table flatness ≤0.3mm/1000mm, side perpendicularity ≤0.1mm/200mm, hole center tolerance ±0.03mm.
Will the table deform due to welding heat?
The D28 welding table features a 25mm thick plate with internal reinforced ribs design, providing excellent heat dissipation and structural rigidity. Thermal deformation is well controlled during welding operations.
Can you customize special sizes or structures?
We accommodate custom sizes, octagonal tables, L-type/T-type combined tables, and special surface treatments according to your requirements.
What is your delivery time?
Standard models: 7-15 working days. Custom products: 15-25 working days.
What trade terms do you accept?
We support FOB, CFR, CIF, DDP and other common international trade terms.
Do you provide installation guidance?
Yes. We provide detailed installation manuals, video tutorials, and comprehensive online technical support.
