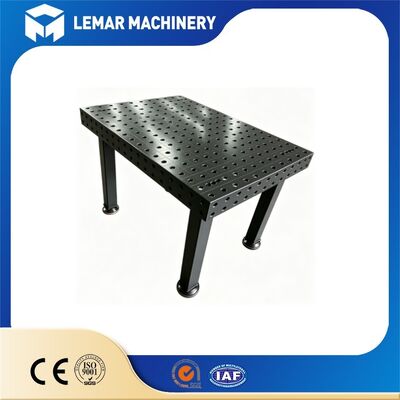

D16 12mm Thick Modular Perforated 3D Welding Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Hole Diameter:
Φ16 Mm, Tolerance: Φ16.065–Φ16.149 Mm
Grid Pitch:
50×50 Mm
Pitch Accuracy:
±0.05 Mm
Positioning Accuracy:
±0.05 Mm
Flatness:
≤0.1 Mm/1000 Mm (high Precision: 0.05 Mm/1000 Mm)
Perpendicularity:
0.05 Mm/200 Mm
Hole Center Accuracy:
±0.03 Mm
Surface Roughness:
Ra 3.2 μm
Uniform Load Capacity:
2–3 Tons
Product Description
D16 12mm Thick Modular Perforated 3D Welding Table
Product Introduction
The D16 12mm-thick modular perforated 3D welding table is a flexible tooling platform designed for precision welding and assembly. It features a core configuration of a Φ16mm hole pattern, a 50×50mm grid, a 12mm-thick tabletop, and 3D positioning capabilities, making it ideal for the precision welding of small-to-medium-sized parts, rapid clamping, and flexible setup.
Production Specifications
| Item No. | Specification (LxW) mm | Height (mm) | Material |
|---|---|---|---|
| 1 | 4000x2000 | 150/100 | Q355 Steel parts/HT300 Cast iron |
| 2 | 3000x2000 | 150/100 | Q355 Steel parts/HT300 Cast iron |
| 3 | 3000x1500 | 150/100 | Q355 Steel parts/HT300 Cast iron |
| 4 | 2500x2000 | 150/100 | Q355 Steel parts/HT300 Cast iron |
| 5 | 2500x1500 | 150/100 | Q355 Steel parts/HT300 Cast iron |
| 6 | 2000x2000 | 150/100 | Q355 Steel parts/HT300 Cast iron |
| 7 | 2400x1200 | 150/100 | Q355 Steel parts/HT300 Cast iron |
| 8 | 2000x1500 | 150/100 | Q355 Steel parts/HT300 Cast iron |
| 9 | 1500x1500 | 150/100 | Q355 Steel parts/HT300 Cast iron |
| 10 | 2000x1000 | 150/100 | Q355 Steel parts/HT300 Cast iron |
| 11 | 1200x1200 | 150/100 | Q355 Steel parts/HT300 Cast iron |
| 12 | 1200x1000 | 150/100 | Q355 Steel parts/HT300 Cast iron |
| 13 | 1000x1000 | 200/150 | Q355 Steel parts/HT300 Cast iron |
| 14 | 1000x800 | 150/100 | Q355 Steel parts/HT300 Cast iron |
Key Features
- High precision: The D16 3D welding table has high flatness and hole position accuracy, ensuring welding/assembly consistency, suitable for precision sheet metal, small structural components, and mechanical parts.
- Modular flexibility: Hole grid + standard fixture configuration allows workpiece changes without rework and assembly, shortening changeover time and adapting to small batch production of multiple varieties.
- Durable and anti-sticking: The surface hardness is high after nitriding treatment, and welding slag is easy to clean, ensuring long service life.
- 3D space operation: 5 sides available, can be clamped from multiple angles of X/Y/Z axes, and complex workpieces can be clamped in one go to complete multi-faceted welding.
- Cost effectiveness: Welding workbenches replace a large number of specialized fixtures, reducing tooling costs, improving efficiency, and reducing rework.
Usage Guidelines
- Do not hit heavily, weld the table itself, or overload
- Do not directly burn the welding table surface with flames (prevents local annealing deformation)
- Do not knock non-standard pins into the holes (prevents accuracy damage)
Frequently Asked Questions
Are your fixtures compatible with other brands?
Yes, 100% compatible with global D16 standard (e.g., Demmeler, Siegmund).
Can I buy only the tabletop without legs?
Yes, we supply tabletop only, leg set, or full package.
What payment terms do you accept?
T/T (30% deposit, 70% before shipment), L/C, Trade Assurance.
Can you offer discount for bulk order?
Yes, better unit price for 3+ tables.
Do you provide CO/Form A/Form E?
Yes, full set of export documents provided.
