D28 D16 Heavy Duty Best 2D Modular Welding Table Systems
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28/D16
Document
Hole Diameter:
Φ16 Mm/ Φ28 Mm (H7 Tolerance)
Positioning Accuracy:
±0.05 Mm
Flatness:
≤0.2 Mm/m
Material:
Q355 High Strength Steel/HT300 Cast Iron
Warranty:
12 Months
Surface Treatment:
Plasma Nitriding
Surface Hardness:
HV 450–500
Trade Terms:
CIF/CFR/FOB/DDP/EXW
Max Uniform Load:
1–5 Ton
Highlight:
heavy duty modular welding table
,2D welding fixture table
,D28 D16 welding table system
Product Description

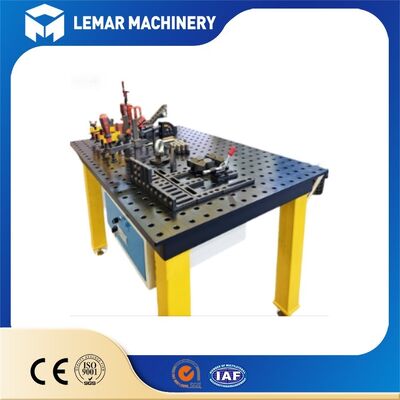

D28 D16 Heavy Duty Best 2D Modular Welding Table Systems
Product Introduction
The D28/D16 heavy-duty 2D modular welding table system is a flexible platform designed for industrial welding and assembly. Its core feature is a high-precision tabletop with a standard array of positioning holes; when paired with modular fixtures, it enables rapid workpiece positioning, clamping, and welding. The "2D" designation indicates that positioning is limited to the X-Y plane, without Z-axis spatial adjustment.
Comparison of Key Specifications: D16 vs. D28
| Parameter | D16 2D Welding Table | D28 2D Welding Table |
|---|---|---|
| Hole diameter | φ16mm | φ28mm |
| Hole spacing | 50×50mm(±0.05mm) | 100×100mm(±0.05mm) |
| Countertop thickness | 12mm | 25mm |
| Flatness | 0.3mm/1000mm | 0.1-0.2mm/1000mm |
| Load-bearing | 1-5 tonnes/m² | 2-10 tonnes/m² |
| Surface hardness | HV450 (Nitrided) | HV450-500 (Nitrided) |
| Advantages | High density of mounting holes, high flexibility, low cost, lightweight | High rigidity, high clamping force, deformation resistance, durability, and stability under heavy loads |
Typical Application Scenarios
- D16 2D Welding Table: Sheet metal parts, small frames, furniture welding, precision assembly, small-batch production
- D28 2D Welding Table: Heavy machinery frames, vehicle chassis, steel structural frameworks, pressure vessels, heavy-duty welding production lines
Certification and Compliance
A mandatory requirement for the EU market; all series of welding tables and fixtures have obtained full CE machinery safety certification, meeting EU standards for workplace safety and equipment protection—an essential qualification for exporting to Europe.
Material Reports
Documentation regarding plate materials, heat treatment test reports, and hardness test reports can be provided to satisfy overseas quality inspection and audit requirements.
Environmental Compliance
The nitriding process generates no pollutant emissions, and surface treatments comply with European and American environmental standards; free from toxic coatings, making the products suitable for welding applications in food processing and medical equipment manufacturing.
Safety Standards
Features such as beveled table edges, anti-shock grounding designs, and load-bearing capacity markings all comply with international safety standards for industrial equipment.
D28 D16 Heavy Duty Best 2D Modular Welding Table Systems — your ideal solution for efficient and reliable welding work.
