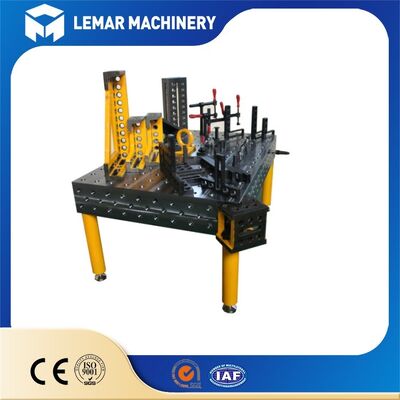

D28 Series Standard 3D Welding Fixture Table 28mm Hole System
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | Western Union,T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole Diameter:
φ28.15 ± 0.03 Mm
Side Height:
200 Mm
Hole Spacing:
100 ± 0.03 Mm
Perpendicularity (vertical):
0.1 Mm / 200 Mm
Hole Center Accuracy:
±0.03 Mm
Surface Roughness:
Ra 1.6 μm
Leg Support:
2 Tons / M²
Frame Support:
3 Tons / M²
Delivery:
FOB / CFR / CIF / DDP Terms Available
Highlight:
28mm hole welding fixture table
,standard 3D welding fixture table
,D28 series welding table
Product Description
D28 Series Standard 3D Welding Fixture Table 28mm Hole System
The D28 Series Standard 3D Welding Fixture Table with 28mm Hole System is a heavy-duty, modular, precision welding platform based on a 100×100mm orthogonal grid and Φ28mm positioning holes. Commonly known in the industry as the "D28 welding platform," it represents a mainstream heavy-duty standard within 3D flexible welding systems and is suitable for the positioning, clamping, welding, and assembly of heavy steel structures, machinery frames, and thick-plate workpieces.
Hole System Specifications
| Specification | Details |
|---|---|
| Hole Diameter | Φ28mm (tolerance typically ±0.02mm to ±0.05mm) |
| Hole Grid Spacing | 100mm × 100mm (tolerance ±0.05mm) |
| Positioning Datums | Precision machining on 5 surfaces (top face + 4 sides); fully interconnected hole matrix; supports 360° 3D clamping |
Comparison with D16 Series: The D16 series features Φ16mm holes and a 50×50mm grid, making it suitable for small, precision components. The D28 welding table is designed for heavy-duty applications, offering approximately double the load-bearing capacity and about 50% greater clamping force compared to the D16 welding table.
Structural Design
- Tabletop Thickness: Standard 25mm, with heavy-duty options up to 30mm
- Reinforcement: Dense array of underside reinforcing ribs
- Load Capacity: 2t/m² (5t/m² for frame-style models)
- Sides: All four sides feature 100mm grid hole pattern with 200mm height
- Modularity: Supports vertical or horizontal clamping and modular expansion through connection of multiple welding tables.
Standard Configuration (2000×1000mm)
- 3D Welding Table: 2000×1000×25mm, Q355 material, nitrided finish, Class 1 precision
- Support: 4 adjustable support legs (M24, ±50mm travel)
- Accessories (Basic Set):
- Φ28 locating pins (10 pcs)
- Quick-action clamps (4 pcs)
- L-shaped positioning squares (2 pcs)
- Reference blocks (2 pcs)
- Grounding cable (1 set)
Get Professional Advice For more details and professional advice on our D28 28mm hole system welding table, get in touch with us today. We are ready to offer you a tailored solution.
