Nitrided D16 3D Flexible Welding Table Made of Steel and Cast Iron
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 3000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Hole Tolerance:
+0.065~+0.149mm
Center Distance Tolerance:
±0.05mm
Position Precision Of Hole:
±0.03mm
Table Flatness:
≤0.1mm / 1000mm
Side Perpendicularity:
≤0.05mm / 200mm
Nitriding Layer Depth:
0.2~0.3mm
Surface Roughness:
Ra3.2μm
Static Load Capacity:
Standard 2t/㎡，Heavy Load Up To 3t/㎡
Bottom Structure:
Integral Reinforced Ribbed Base
Highlight:
Nitrided D16 welding table
,Flexible steel welding fixture
,Cast iron welding workbench
Product Description

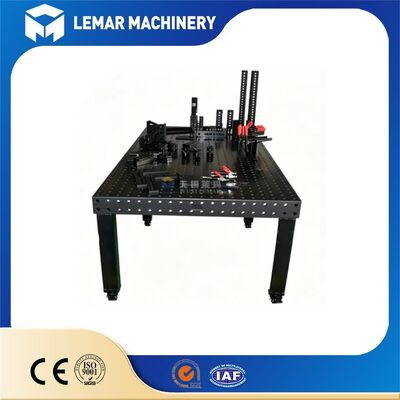

Nitrided D16 3D Flexible Welding Table Made of Steel and Cast Iron
Our Nitrided D16 3D Flexible Welding Table is a universal modular welding fixture widely used in metal fabrication workshops, auto frame processing and automated robotic welding stations. We supply two mainstream raw materials: high-strength Q355 structural steel and shock-resistant HT300 cast iron to satisfy different precision and load-bearing demands. All working surfaces adopt professional nitriding treatment to upgrade surface hardness, wear resistance and anti-welding-spatter performance.
Material Options Comparison
Q355 Alloy Steel Version
Base material: S355JR low-alloy high-strength structural steel, steel plate welded as a whole with internal reinforcement ribs, stress relief annealing treatment
Advantages: Lighter weight, convenient workstation movement and splicing, impact resistance, high load-bearing capacity, high cost-effectiveness, preferred for small and medium-sized sheet metal and frame selection
Hardness after nitriding: HV450~800
HT250/HT300 Cast Iron Version
Substrate: High strength gray cast iron integral casting, reinforced rib structure of the box body, high temperature aging stress relief, extremely low internal stress and not easy to deform
Advantages: Strong shock absorption, minimal welding vibration, stable flatness accuracy for long-term use, high temperature and heat resistance, preferred for high-precision precision welding and robot welding assembly
Hardness after nitriding: HV450~630
Standard Dimensions
| Length x Width (mm) | Table Thickness (mm) | Standard Ground Clearance Height | Application |
|---|---|---|---|
| 1000×800 | 100/150/200 | 630 mm | Lightweight/General Purpose |
| 1000×1000 | 100/150/200 | 630 mm | Hot selling standard model |
| 1200×800 | 100/150/200 | 630 mm | Small sheet metal |
| 1200×1200 | 100/150/200 | 630 mm | Medium and heavy-duty welding |
| 1500×1000 | 100/150/200 | 630 mm | Commonly used rack pipes |
| 2000×1000 | 100/150/200 | 630 mm | Special for long profiles |
| 2000×1500 | 100/150/200 | 630 mm | Overloaded batch production |
| 3000×1500 | 100/150/200 | 630 mm | Robot welding customization |
Our D16 3D welding table supports non-standard customization
Nitriding Process Benefits
- Wear resistant and scratch resistant: The hardness of the nitride surface is much higher than that of the base material, and long-term fixture insertion and removal, as well as welding slag collision, are not easy to scratch the tabletop
- Anti sticking welding slag: Welding slag splashes at high temperatures and is not easy to melt and stick to the countertop, saving time in cleaning and increasing the service life of blackening/painting welding tables by more than 3 times
- Rust and corrosion resistance: The workshop environment with water vapor and welding fumes is not easy to rust and requires frequent maintenance
- Dimensional stability: Nitriding low-temperature process, no deformation occurs after processing, and the factory precision is permanently locked
Product Advantages
- Flexible universal: One set of D16 3D welding table can adapt to dozens of workpieces, reducing the investment in specialized fixtures by 70%
- Significant efficiency improvement: The clamping speed is 40%~60% faster than traditional marking fixtures, reducing rework and scrap
- Durable and long-lasting: nitriding+high-quality substrate, can be used for 8-15 years under normal workshop conditions without deformation
- Modular expansion: on-demand size matching, universal D16 standard for accessories, easy replacement and procurement
Customization Services
- Customization of non-standard length and width in any size (4000 × 2000, 6000 × 2500 and other ultra long welding tables)
- The thickness of the countertop is 100/200/250/300mm and can be customized as needed
- Special surface: alternative processes such as blackening, spraying, ion nitriding, etc.
- Design of a complete set of assembly fixtures for multiple splices along the entire line
Want to upgrade your welding precision and efficiency? Contact us to get full specs of our Nitrided D16 3D Flexible Welding Table made of steel or cast iron. Custom sizes, full accessories and reliable nitrided surface available!
