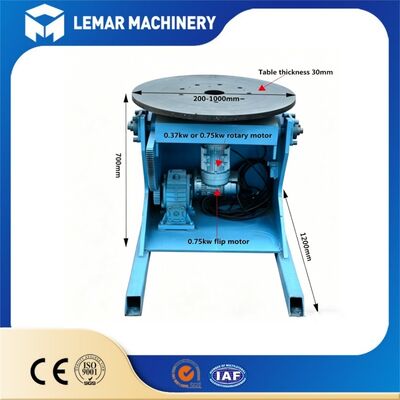

600kg Welding Positioner Automatic Rotary Welding Table
600kg automatic welding positioner
,rotary welding table with high capacity
,automatic rotary welding positioner
The 600kg Welding Positioner is a compact, high-precision welding auxiliary device designed for rotary welding of pipes, flanges, elbows, and small cylinder workpieces. This automatic welding rotary table features frequency conversion speed regulation and 360° continuous rotation. It operates stably with low noise and uniform speed, significantly improving circular weld quality and welding efficiency. With its compact structure, easy operation, and high cost performance, it is the preferred equipment for small and medium welding workshops.
| Item | Specification |
|---|---|
| Model | ZHB-600 Welding Positioner |
| Rated Load | 600kg |
| Table Diameter | 800mm (Customizable) |
| Rotation Speed | 0.5~5r/min Stepless Adjustable |
| Rotation Angle | 360° Continuous Rotation |
| Motor Power | 0.75KW |
| Control Mode | Foot Switch + Manual Control Box |
| Application | Pipe, Flange, Elbow, Small Cylinder Welding |
- Stepless VFD speed adjustment, stable rotation without shaking, ensures uniform welding seam
- 360° continuous rotary working, suitable for all kinds of circumferential seam welding
- Compact and firm structure, small floor space, easy to install and move
- High precision rotating accuracy, effectively reduces welding deformation
- Foot switch and manual button dual control, simple and labor-saving operation
Base Frame
Constructed with thick Q235 steel welded structure, stress relief treatment, not easy to deform.
Rotary Table
High-precision processed steel plate, strong bearing capacity, flat and wear-resistant.
Drive System
Gear reducer + fine-tuning frequency conversion motor, stable transmission and low failure rate.
Control System
Standard foot pedal switch + manual control box, supports continuous rotation and jog operation.
- Small pipe and flange circumferential seam welding
- Elbow, pipe fitting and tubular workpiece automatic welding
- Stainless steel small cylinder and tank body welding
- Hardware mechanical parts circular welding processing
- Small pressure vessel and environmental protection equipment welding production
| Component | Packing Method |
|---|---|
| Main Body | Export fumigated wooden pallet + stretch film |
| Control Box | Independent plywood case with foam protection |
| Accessories | Standard export carton |
