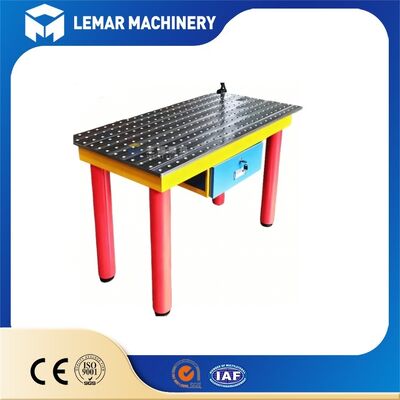

Heavy duty flat 2D welding table with modular fixture holes
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 3000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
heavy duty 2D welding table
,modular fixture welding table
,flat welding table with holes
Heavy-duty flat 2D welding table with modular fixture holes, commonly referred to as the 2D flexible welding table in the industry, is a modular welding workbench specifically designed for sheet metal and frame-type workpieces. It is dedicated to planar two-dimensional positioning (X/Y axes) and lacks vertical side full holes (differentiating it from the 3D five-hole platform). The workbench achieves tooling-free assembly and clamping through its matrix holes on the tabletop.
| Parameter | D16 2D Welding Table | D28 2D Welding Table |
|---|---|---|
| Hole Diameter | Φ16mm | Φ28mm |
| Hole Center Distance | 50mm×50mm (±0.03~0.05mm) | 100mm×100mm (±0.05mm) |
| Table Thickness | 12mm | 25mm |
| Flatness Accuracy | 0.1~0.3mm/1000mm | 0.1~0.3mm/1000mm |
| Load Capacity | 2-3 tons/㎡ | 3-5 tons/㎡ |
| Surface Treatment | Nitriding and nitriding (HV450+ wear-resistant and slag resistant) / Ordinary spray painting | |
Conventional length and width: 1000 × 1000, 1200 × 1500, 1500 × 2000, 2000 × 3000mm; the standard height of the workbench above the ground is 850mm (industrial human-machine universal height), and the support legs can be configured with adjustable support feet or brake universal wheels. Custom non-standard sizes available.
- Main Material of Countertop: HT300/HT250 high-strength cast iron (stress relief annealing, long-term heavy load without deformation); Q355 high-strength steel plate, welded with reinforced ribs for the overall box body
- Base Structure: Square tube welded reinforcement bracket + bottom longitudinal and transverse reinforcement ribs, heavy-duty model with built-in honeycomb reinforcement structure
- Support Legs: Standard fine adjustment and leveling bolts for table level calibration even on uneven ground
- Surface Process: Preferred gas nitriding treatment (nitriding layer of 0.01~0.02mm, surface hardness of HV420~480, resistance to high temperature welding slag splashing, rust prevention and wear resistance); Economic type available with black phosphating + rust proof spray painting
- Basic Warranty: 12 months - free repair/replacement of parts for table deformation and inaccurate hole accuracy caused by non-human overweight or high temperature burns
- Fixture Accessories: 6-month warranty
- Extended Warranty: Optional paid extended warranty up to 3 years
- Service: Remote video guidance for installation and debugging; Large orders include engineer on-site calibration
- Spare Parts: Perennial universal accessories (locking pin, leveling foot, pressure clamp), global express replacement
CE certification: All of our welding stations have passed the EU Machinery Safety CE and can smoothly clear customs throughout the EU.
A: Perfect for sheet metal cabinet frames, equipment base, steel gate, small trailer chassis, agricultural machinery bracket, fitness equipment frame, all planar structural weldment; widely used in metal fabrication, machinery, automotive accessory & steel construction factories.
A: Brake casters for easy workshop moving, adjustable leveling feet, under-table storage shelf, dust-proof hole plugs, earth connection terminal, edge slag collection groove, full set clamping fixture kits.
A: Standard stocked sizes (D16/D28 painting/nitriding): 7-15 working days; non-standard customized tables: 15-25 working days.
A: Small size: solid wooden case with corner protection; big full-set table: waterproof stretch film + steel strapping + fumigated wooden pallet, equipped with desiccant for long ocean transit moisture-proof.
A: Custom size, customized thickness, special surface finish, hydraulic lifting base are all acceptable for bulk orders.
