5 Ton Adjustable Welding Rotator Heavy Duty Pipe Tank Turning Roller
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 150.00cm * 55.00cm * 70.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,T/T,D/P,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
KTG-05
Document
Product Name:
5 Ton Adjustable Welding Rotator
Rated Load:
5 Ton
Adjustment Type:
Manual Adjustable
Colour:
Customized
Roller Material:
Steel Core + Polyurethane (PU) Coating
Roller Diameter:
φ250 Mm (Customizable)
Roller Width:
120 Mm (Customizable)
Frame Material:
Carbon Steel
Transport:
Export Standard Package
Highlight:
5 ton welding rotator heavy duty
,adjustable pipe turning roller
,welding rotator for tank turning
Product Description

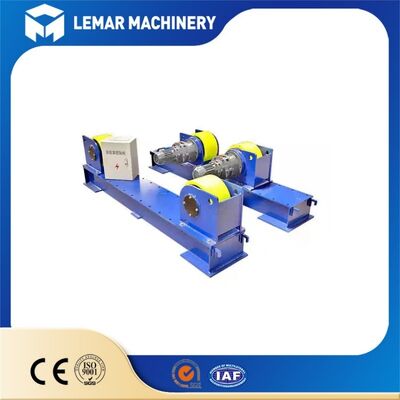

5 Ton Adjustable Welding Rotator Heavy Duty Pipe Tank Turning Roller
Product Overview
This 5 Ton Adjustable Welding Rotator is a heavy-duty welding auxiliary device specially designed for cylindrical workpieces. As a professional Pipe Welding Turning Roller, it is widely used for circular seam welding of pipes, tanks and pressure vessels. The roller center distance is manually adjustable to fit different workpiece diameters. This heavy duty welding rotator ensures uniform rotating speed and smooth operation, greatly improving welding seam quality and production efficiency, ideal for various cylinder tank welding projects.
Technical Parameters
| Item | Specification |
|---|---|
| Rated Load | 5Ton (5000kg) |
| Product Type | Manual Adjustable Welding Rotator |
| Speed Control System | Variable Frequency Stepless Regulation |
| Rotation Speed Range | 60 - 600 mm/min (Stepless adjustable) |
| Applicable Workpiece Diameter | Φ250mm - Φ2300mm |
| Roller Specification | Φ240×100mm (Customizable) |
| Roller Options | Solid Steel Roller / High Wear-resistant PU Rubber Roller |
| Drive Mode | Active + Passive Roller Group |
| Main Motor Power | 0.75KW Copper Core Industrial Motor |
Structural & Operational Performance
- Operation Accuracy: Synchronous deviation ≤ ±0.5mm/m, no axial wandering
- Durable Operation Capacity: Support 24h long-term continuous operation
- Positioning Adjustment Mode: Manual screw adjustment for roller center distance
- Main Frame Construction: Q235 Integral Welded Steel Structure
- Applicable Welding Workpieces: Pipe, Cylinder, Boiler, Pressure Vessel, Tank Barrel Surface
- Anti-corrosion Treatment: Anti-rust primer + Wear-resistant finish paint
Core Advantages
- Flexible Adjustable Design -- The adjustable roller span adapts to various pipe diameters, greatly improving the versatility of this 5 Ton Adjustable Welding Rotator.
- Precise Variable Frequency Control -- Smooth and stable speed adjustment ensures uniform rotation and high-precision welding effect.
- Dual Roller Optional -- Matches different workpieces, perfectly serving diverse pipe welding turning roller working scenarios.
- Stable & Low Noise -- Standard industrial configuration supports 24-hour continuous production.
Application Range
- Circumferential welding of carbon steel and stainless steel pipes
- Boiler, pressure vessel and tank barrel welding
- Various cylinder tank welding and surfacing production
- Automatic welding matching with welding manipulator
Steel Roller vs PU Roller Comparison
| Comparison Item | Solid Steel Roller | PU Rubber Roller |
|---|---|---|
| Material | High-strength forged carbon steel | High elastic wear-resistant polyurethane |
| Heat Resistance | Excellent, anti high temperature welding spatter | General, suitable for normal temperature welding |
| Surface Protection | Hard texture, suitable for thick carbon steel workpieces | Soft elastic surface, no scratch on stainless steel & thin wall parts |
| Load Performance | Heavy load bearing, long continuous working | Stable load, quiet and smooth operation |
| Best Application | Heavy duty carbon steel tank welding | Precision pipe and stainless steel cylinder welding |
Company Certification
Frequently Asked Questions
Q1: What is this equipment used for?
It is a 5 Ton Adjustable Welding Rotator mainly used for pipe, cylinder and pressure vessel circumferential welding.
Q2: Can the rotating speed be adjusted?
Yes, equipped with advanced variable frequency turning roller system for stepless speed regulation.
Q3: Which roller should I choose?
Steel rollers for heavy & high-temperature workpieces; PU rollers for surface protection precision welding.
Q4: Is it suitable for heavy production?
This heavy duty welding rotator supports long-time continuous welding for industrial batch production.
