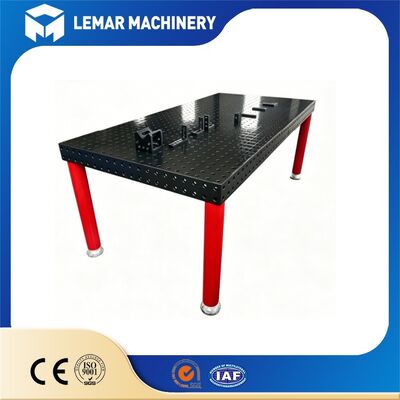

D16 2400×1200mm 16mm Holes Precision 3D Welding Table
| MOQ: | 1 |
| Price: | 500-1500 USD |
| Standard Packaging: | 30000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Overall Size:
2400mm × 1200mm
Hole Diameter:
Ø16mm
Grid Pitch:
50mm ±0.05mm
Working Surfaces:
5 Sides (1 Top + 4 Sides)
Table Flatness:
≤0.10mm / 1000mm
Hole Position Tolerance:
±0.03mm
Surface Verticality:
≤0.05mm / 200mm
Material:
HT300 Cast Iron / Q355 Steel
Rated Load:
2 Ton / ㎡, Total ~2.8 Ton
Table Thickness:
12mm
Surface Treatment:
Milling / Nitriding (Optional)
Highlight:
16mm holes welding table
,2400x1200mm precision welding table
,3D welding fixture table with holes
Product Description
D16 2400×1200mm 16mm Holes Precision 3D Welding Table
Product Overview
The D16 2400×1200mm 16mm Holes Precision 3D Welding Table is a modular, high-precision, multi-sided flexible welding fixturing platform. Designed for precision small parts, sheet metal, frame structures, fixture assembly, and robotic welding applications, it serves as the mainstream fixturing solution for small to medium-sized precision welding workshops.
Key Features
- Standard D16 Hole System: Ø16mm hole diameter with precise 50mm × 50mm grid layout; globally compatible accessories with strong versatility
- Extra-Large Working Dimensions: 2400 (L) × 1200 (W) mm; ample space for long workpieces or multiple part processing
- Five-Sided 3D Positioning: Full-hole design on top surface and all four sides for comprehensive multi-angle clamping without blind spots
- High Precision Grade: Flatness ≤0.10mm/1000mm; hole position tolerance ±0.03mm; perpendicularity ≤0.05mm/200mm
- Heavy-Duty & Anti-Deformation: Constructed from HT300 cast iron or Q355 steel with stress-relieving treatment for stable precision
- Wear-Resistant Surface: Optional nitriding treatment prevents welding spatter adhesion, withstands high temperatures, and facilitates easy maintenance
- Superior Load-Bearing Capacity: Overall load capacity up to 2.8 tons, ideal for medium-to-heavy-duty welding operations
Export Grade Packaging
- Casing: Extra-thick, fumigated plywood crate (fumigation-free; complies with global customs export standards) – robust, drop-resistant, moisture-proof, and impact-resistant
- Inner Layer: Surface treated with anti-rust oil and fully wrapped in waterproof plastic film to isolate against humidity and salt spray during sea transport
- Protection: Work surfaces, mounting holes, and corners fitted with shock-absorbing foam and corner guards to eliminate bumps, scratches, and deformation
- Accessories: All clamps, pins, and screws individually packaged; includes English instruction manual, Quality Certificate, and Packing List
Shipping Terms and Delivery Timelines
| Supported Trade Terms | EXW / FOB / CIF / DAP / DDP (All major international trade terms) |
|---|---|
| Shipping Methods | Sea, Air, and Land Freight; available for both Full Container Load (FCL) and Less than Container Load (LCL) shipments |
| Lead Time | Standard Stock Items: Shipped within 7-15 business days Customized Items: 15-25 business days (subject to adjustment based on configuration and quantity) |
| Shipping Services | Provision of complete customs clearance documentation, logistics tracking, and port-of-arrival assistance |
Global After-Sales Support
- Comprehensive English-language technical documentation, installation videos, and operation manuals
- Online Technical Support: Remote guidance for installation, commissioning, and troubleshooting
- Large-Scale Projects: On-site installation and training by engineers can be arranged (including support for overseas projects)
- Rapid global dispatch of spare parts to minimize production line downtime
Frequently Asked Questions
Can I connect multiple welding tables together?
Yes. We provide professional connection plates to combine several tables into a large working area for extra-long workpieces.
Is the nitrided surface necessary?
Nitriding greatly improves hardness, wear resistance and anti-spatter performance. It is highly recommended for heavy daily welding workshops.
Can I use this D16 welding table for robotic welding?
Absolutely. Strict precision control makes it the perfect match for automatic robotic welding lines.
What payment methods do you accept?
T/T, L/C, PayPal, Credit Card and other international payment methods are available.
Do you provide English installation videos?
Yes. We offer detailed English manuals and installation videos for all customers.
Get More Information
If you require further specifications, pricing or custom solutions for the D16 2400×1200mm Precision 3D Welding Table, get in touch with our sales team anytime.
