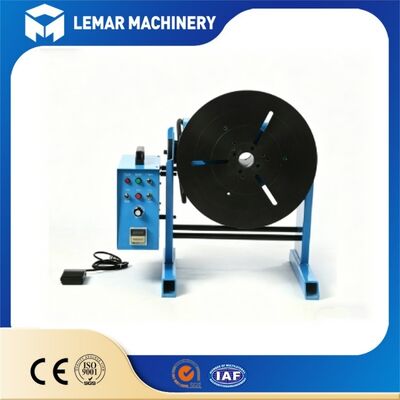

Light Duty 100kg 360° Rotary Tilting Welding Positioner for Small Workpiece
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 55.00cm * 59.00cm * 65.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
light duty welding positioner 100kg
,360° rotary tilting welding positioner
,small workpiece welding positioner
This 100kg light welding positioner is designed for small workpieces circular seam welding.
Rated load 100kg, table diameter Φ 400mm, rotation speed 0.5 -5r/min. Tilt angle 0°-100° with self-locking structure.
It adopts 220V standard voltage, compact size and easy operation. Suitable for flanges, pipes and hardware precision welding.
| Model | BWJ-1 |
|---|---|
| Max horizontal load | 50KG |
| Max vertical load | 100KG |
| Rotation speed | 0.3-3rpm/min |
| Turntable angle | 0-90 |
| Work table diameter | 400mm |
| Rotation power | 0.18kw |
| Speed mode | AC Frequency conversion stepless speed regulation |
| Voltage | AC 220V |
| Chuck | Available |
| Welder holder | Available |
| Center hole diameter | 90/170mm |
| Work table height | 520mm |
| Tilt mode | Manual |
| Oversize | 500(L)*530(W)*520(H) |
| Weight | 67kg |
- Rotary Worktable: Φ400mm T-slot table, convenient for installing chucks and fixtures.
- Tilting Frame & Body: Thickened steel plate frame, worm gear self-locking structure, stable tilting.
- Drive Motor System: 120W rotation motor + 400W tilting motor, smooth operation.
- Speed Reducer: High-precision worm reducer, low noise and long service life.
- Electric Control Box: Independent control box for speed adjustment, forward and reverse rotation.
- Foot Switch: Foot control start/stop, easy operation and improve work efficiency.
- Place the unit on flat solid ground, connect the power supply correctly.
- Load workpiece evenly, strictly do not exceed 100kg rated load.
- Operate rotation and tilting gently, avoid sudden start and stop.
- Clean welding slag and dust on the machine regularly after daily use.
- Add lubricating grease to transmission parts every 2-3 months.
- Cut off power when idle, check circuit and parts periodically.
- Adopt standard export wooden case packaging, compression-resistant and drop-proof.
- Equipped with foam lining inside to buffer collision and protect the machine.
- Complete standard accessories and operation manuals are packaged together.
- The whole machine is firmly fixed to prevent shaking and deformation in transit.
- Support sea freight, air freight and international express, with formal customs labels.
A: It is fully suitable for MIG, TIG, CO2 gas shielded welding and plasma welding for small workpieces.
A: Yes, it supports penetrating installation of long shaft and pipe workpieces for through welding operation.
A: The machine is compact and light weight, easy to carry and place at any workshop station.
A: Adopts precision transmission structure, runs smoothly with no obvious shaking, ensuring uniform weld seam.
A: Yes, the foot switch can cooperate with the welding machine to realize synchronous start and stop, improving working efficiency.
