30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 38.00cm * 37.00cm * 38.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
ZHB-30
Document
Model NO.:
ZHB-30
Max Eccentricity Distance:
150mm
Voltage:
110V/220V
Function:
Pipe Flange Welding Turning Table
Tilt Angle:
0-90
Vertical Loading Weight:
15kg
Filt Mode Manual:
Manual
Welder Holder:
Yes
Table Diameter:
12 Inches
Highlight:
30kg bench rotary welding positioner
,welding positioner for pipe flange
,rotary positioner for tank head welding
Product Description

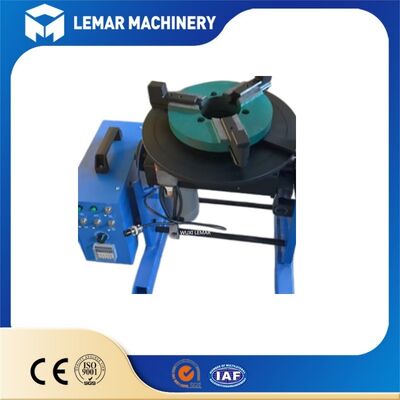

30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding
This bench rotary welding positioner is engineered for workpieces under 30kg horizontal load. With variable frequency drive and self-locking tilt design, it holds weld seams horizontal for stable MIG/TIG welding. Reinforced frame cuts vibration and removes risks brought by manual part flipping.
Technical Specifications
| Item | Specification |
|---|---|
| Model | ZHB-30 Welding Positioner |
| Max Horizontal Load | 30kg |
| Rotation Speed | 0.1-12rpm VFD stepless |
| Tilt Angle | 0°-90° self-locking |
| Standard Table Size | Φ310mm customizable |
| Rotation Motor | 0.37kW |
| Tilt Mode | Manual hand wheel, electric optional |
| Control Type | Cabinet + handheld remote |
| Protection Grade | IP54 |
| Certificates | CE, ISO9001 |
| Factory Test | 12-hour full-load aging test |
Core Advantages
- Worm gear self-locking tilting structure supports 0°-90° full-angle positioning, firmly fixing flanges, elbows and tank heads without repeated clamping
- 0.1-12rpm VFD stepless rotation with digital display outputs stable torque, smooth low-speed operation for consistent welding seams
- Thick cast iron turntable and stress-relief reinforced steel base eliminate vibration, stable long-term running under full 30kg load
- Dual control system: independent control cabinet + handheld remote, foot switch available as optional accessory
- Complete safety configuration: overload, overcurrent & emergency stop protection, IP54 dust & splash-proof electrical cabinet adapted to harsh welding workshops
- Multiple custom upgrades supported: three-jaw chuck, welding torch stand, wireless remote, electric tilting function
- All machines undergo 12-hour full-load aging test before delivery to guarantee stable quality
Application Scope
- Circular girth welding for standard pipe flanges, thick elbows and mini pressure vessel heads
- Circular seam machining for medium valve bodies, hydraulic connectors and mechanical hardware parts
- Polishing, grinding and surfacing overlay welding for disc-shaped metal workpieces
- Processing small hydraulic cylinder barrels and automobile exhaust pipe fittings
Production & Quality Inspection Standard
Cast iron turntable and base undergo annealing to eliminate deformation risk. Top brand electric parts ensure 24-hour stable running. Every unit gets full function inspection and mandatory aging test to meet international CE safety norms.
Product Packaging
Frequently Asked Questions
Q: What workpieces suit this 30kg positioner?
A: Medium metal parts within 30kg horizontal weight, including flanges, tank heads, valve bodies and pipe fittings.
Q: Can I install three-jaw chuck and torch stand?
A: Yes, custom fixtures and auxiliary holders can be matched as your demand.
Q: Welding machine linkage available?
A: Synchronous linkage control function can be customized for automatic welding lines.
