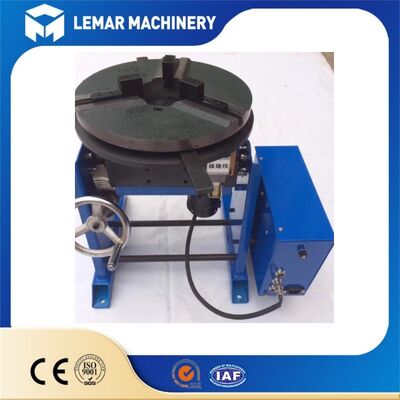

100kg Rotary Welding Positioner Tilting Worktable for Cylinder & Pipe Fitting Fabrication
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 55.00cm * 59.00cm * 65.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-10
Document
Model NO.:
BWJ-10
Rotaion Speed:
0.1-1rpm
Tilting Angle:
0-90°
Max Eccentricity Distance:
150mm
Voltage:
110V/220V
Function:
Pipe Flange Welding Turning Table
Control Mode:
Normal Or CNC
Horizontal Loading Weight:
100kg
Vertical Loading Weight:
100kg
Highlight:
100kg rotary welding positioner
,tilting worktable for pipe fabrication
,welding positioner for cylinder fitting
Product Description
100kg Rotary Welding Positioner Tilting Worktable for Cylinder & Pipe Fitting Fabrication
Product Introduction
This 100kg rotary welding positioner is a medium-load tilting worktable, specially developed for welding, grinding, forming and assembly of cylinders, pipes and various metal fittings. It is equipped with 0-90° manual self-locking tilt and 360° continuous rotating functions. Boasting enhanced load-bearing capacity and stable running performance, this tilting worktable is widely used for circular seam welding and surface processing of medium-sized workpieces.
Main Technical Parameters
| Item | Standard Specification | Optional Specification |
|---|---|---|
| Rated Horizontal Load | 100 kg | - |
| Rated 90° Tilt Load | 55 kg | - |
| Working Table Diameter | 350 mm | Custom size available |
| Tilting Angle | 0° ~ 90°, manual self-locking | - |
| Rotation Speed | 1 ~ 14 rpm, stepless adjustment | 0.3~8 rpm customized |
| Motor Power | DC 120W | - |
| Power Supply | AC 220V, 50/60Hz | AC 110V, 50/60Hz |
| Overall Dimension (L×W×H) | 420×410×400 mm | - |
| Net Weight | 58 kg | - |
| Table Flatness | ≤ 0.1 mm/m | - |
| Control Mode | Manual controller + Foot pedal | Digital speed indicator |
Key Advantages
- Medium Load for Diversified Workpieces: Reinforced frame stably holds up to 100kg loads, perfectly suitable for medium-sized cylinders, pipe fittings and disc parts. It expands processing range to meet diverse production demands.
- Adjustable Tilt & Smooth Full Rotation: 0-90° tilting design with firm self-locking function. Combined with steady 360° rotation, it delivers ideal working angles and greatly raises circular welding efficiency.
- Durable & High-precision Tabletop: High-frequency quenched surface resists wear and welding slag. It maintains excellent flatness and positioning accuracy even after long-term repeated use.
- Flexible Stepless Speed Control: Wide speed range can be adjusted freely to match different welding and polishing processes, keeping consistent rotation for neat and firm weld seams.
- Robust Structure & Simple Operation: Integrated body improves overall stability. Intuitive control system is easy to operate, well suited for batch processing and daily workshop production.
Workpiece Adaptation Scope
This 100kg rotary welding positioner fits multiple workpieces and processing procedures:
- Carbon steel, stainless steel cylinders and pressure components
- Large flanges, pipe connectors and mechanical disc parts
- Circular seam welding, edge trimming and surface polishing
- Positioning support for semi-automatic production and manual precision machining
Pre-delivery Quality Inspection
- Full load test: Runs continuously under 100kg rated load, no abnormal noise or structural deformation.
- Tilting locking test: Repeated angle adjustment to verify stable self-locking performance.
- Speed stability test: All speed ranges run smoothly to adapt to various processing requirements.
- Electrical safety test: All circuits and control components pass strict inspection to meet industrial safety standards.
Frequently Asked Questions
Q: What is the rated load of this welding positioner?
A: The horizontal load is 100kg, and the maximum load at 90° tilt is 55kg, designed for medium-sized metal workpieces.
Q: Can the tilting angle be fixed after adjustment?
A: Yes. It features mechanical self-locking, the angle will not shift during operation.
Q: Is the rotating speed adjustable?
A: It supports stepless speed regulation, and customized speed range is available upon request.
Q: What power voltage does this equipment use?
A: Standard 220V, 110V version can be customized for different regions.
Q: What about your after-sales service?
A: We offer 12-month full machine warranty and professional lifelong technical support.
